Easton Half-Out Inserts

Name: Easton Half-Out Inserts
Brand: H&H
Price: 34.99 USD
Availability: OutOfStock

$34.99 USD

Sale Sold out

Material Stainless Steel Aluminum

Size #1 #2

Product variants

Quantity

75 Grain Stainless Steel & 25 Grain Aluminum

Only for 5mm Arrows

8-32 Threaded

Dozen Bag

Two sizes available for each material.

Please refer to the corresponding arrow chart or product guide for sizing.

DESCRIPTION

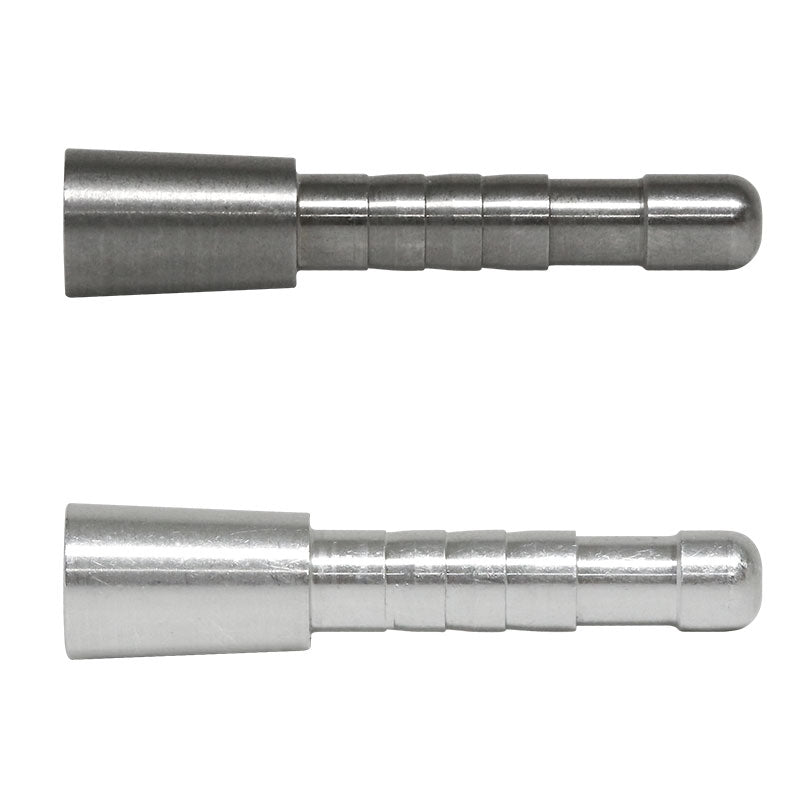

Easton’s 5MM Half-Out Insert is a convenient insert option compatible with any Easton 5mm arrow shaft. Available in Aluminum or Stainless Steel configurations, this half-out delivers improved FOC versus conventional inserts

Refer to the following charts for the best fitting components for your setup.

5MM FMJ CHART

5MM AXIS CHART

SIZE	SHAFT WEIGHT (GPI)	SPINE @ 28" SPAN (DEFLECTION IN INCHES)	STOCK LENGTH (INCHES)	FIELD POINT (O.D. INCHES)	MATCH GRADE HIT COLLAR	BROADHEAD ADAPTER RING SIZE (5 GRAINS)	O.D. (INCHES)	5MM HALF OUT (SIZE)

5MM Half-Out Insert

Aluminum Half-Out Specifications:

8-32 Thread
25 grains
7075-T6 Alloy
Packaged per dozen
Exposed length is 0.487″

Stainless Steel Half-Out Specifications:

8-32 Thread
75 Grains
416 Stainless Steel
Packaged per dozen
Exposed length is 0.487″

View full details


500	9.1	0.500	31	17/64	1	0.256	#1
400	10.2	0.400	31.5	17/64	2	0.263	#2
340	11.3	0.340	32	9/32	3	0.269	#2
300*	12.0	0.300	*32.5	9/32	4	0.273	#2
250*	11.5	0.250	*33	9/32	3	0.273	#2
250** (Dangerous Game)	17.7	0.250	*32.5	19/64	N/A	0.290	N/A


600	7.2	0.600	30.5	17/64	#1	BAR 3	0.253	#1
500	8.1	0.500	31	17/64	#1	BAR 3	0.258	#1
400	9.0	0.400	31.5	17/64	#2	BAR 4	0.264	#2
340	9.5	0.340	32	9/32	#3	BAR 5	0.267	#2
300*	10.7	0.300	32.5*	9/32	#4	BAR 6	0.275	#2
260*	11.5	0.260	34*	9/32	#5	BAR 6	0.280	#2
200*	12	0.200	34*	9/32	#6	BAR 6	0.280	#2
